Processing. Please wait. Brand: Midea Save Listing| Email Listing | Share Product Name: 9000 Btu Midea 110V SEER 24.4 Wall Mount Air Conditioner Oasis Series MEHS09AVH1 MCHS09AVH1 Item#: MEHS09AVH1 MCHS09AVH1 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - MEHS09AVH1 MCHS09AVH1 The following specifications are if this outdoor unit is paired up with indoor unit model #: MEHU-09AVH1. See compatible products below for links to matching indoor units. Performance Nominal Cooling BTU/H 9000(2050-12000) Nominal Heating BTU/H 11500(3200-14000) SEER BTU / KW 24.4 HSPF BTU / KW 10 EER Cooling BTU / KW 15 Cooling Operating Range F ° Degrees 5-122 Heating Operating Range F ° Degrees 5-86 Moisture Removal Pints/Hour 2.1 Electrical Voltage / Phase / Frequency 115V~ 60Hz, 1Ph Recommended In / Out Cable 14 AWG/4 Minimum Circuit Ampacity Amps 10.0 Locked Rotor Running (Cool / Heat) Amps 2.9 / 4.2 Recommended Fuse Size Amps 15.0 Specifications Air Circulation Hi / Med / Low CFM 441/383/265 Indoor Noise Level: Hi/Med/Low Dba 43/37/31 Outdoor Noise Level Cooling Dba 54 Outdoor Noise Level Heating Dba 54 Air Direction Horizontal Deg Angle Automatic Air Filter Type Washable Connection Flare Combined Maximum Length Feet 66 Maximum Vertical Differential Feet 26 Connection Pipe Size Suction Inches 3/8 Connection Pipe Size Discharge Inches 1/4 Physical Net Weight (Indoor / Outdoor) LBS 18/74 Height Condensing Unit Inches 21 1/4 Depth Condensing Unit Inches 11 1/4 Width Condensing Unit Inches 29 15/16 Height Evaporator Inches 11 Depth Evaporator Inches 7 13/16 Width Evaporator Inches 32 7/8 Refrigerant piping - Liquid side/ Gas side Oz R410A/44.09 Refrigerant piping - Liquid side/ Gas side Oz mm(inch) F6.35/F9.52(1/4"/3/8") Qty’per 20’ /40’ /40'HQ 96/206/234 Product Code: MCHS-09AVH1 Product Condition: New <br /> Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 7 + 2 Send Shop for Midea and browse manuals and details of MEHS09AVH1 MCHS09AVH1 Heating Repair Missouri City, TX Air Conditioning Contractors Bradenton, FL Duct Cleaning Oro Valley, AZ Air Conditioning Contractors Olathe, KS HVAC Service Plano, TX Electrical Company Maplewood, MN Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:

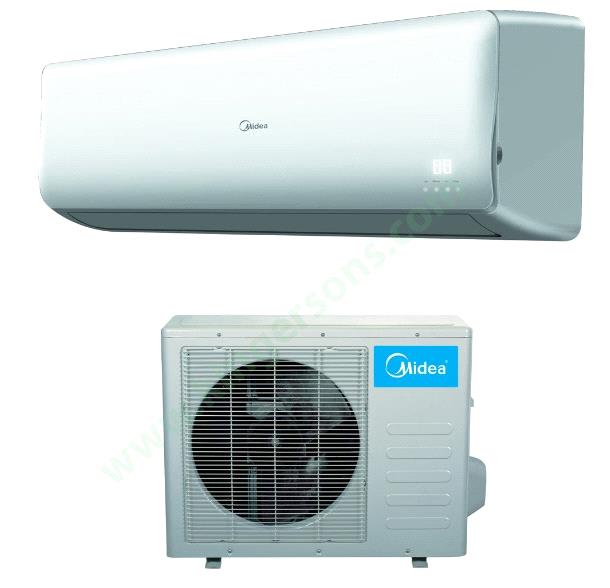

Brand: Midea Save Listing| Email Listing | Share Product Name: 9000 Btu Midea 110V SEER 24.4 Wall Mount Air Conditioner Oasis Series MEHS09AVH1 MCHS09AVH1 Item#: MEHS09AVH1 MCHS09AVH1 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - MEHS09AVH1 MCHS09AVH1 The following specifications are if this outdoor unit is paired up with indoor unit model #: MEHU-09AVH1. See compatible products below for links to matching indoor units. Performance Nominal Cooling BTU/H 9000(2050-12000) Nominal Heating BTU/H 11500(3200-14000) SEER BTU / KW 24.4 HSPF BTU / KW 10 EER Cooling BTU / KW 15 Cooling Operating Range F ° Degrees 5-122 Heating Operating Range F ° Degrees 5-86 Moisture Removal Pints/Hour 2.1 Electrical Voltage / Phase / Frequency 115V~ 60Hz, 1Ph Recommended In / Out Cable 14 AWG/4 Minimum Circuit Ampacity Amps 10.0 Locked Rotor Running (Cool / Heat) Amps 2.9 / 4.2 Recommended Fuse Size Amps 15.0 Specifications Air Circulation Hi / Med / Low CFM 441/383/265 Indoor Noise Level: Hi/Med/Low Dba 43/37/31 Outdoor Noise Level Cooling Dba 54 Outdoor Noise Level Heating Dba 54 Air Direction Horizontal Deg Angle Automatic Air Filter Type Washable Connection Flare Combined Maximum Length Feet 66 Maximum Vertical Differential Feet 26 Connection Pipe Size Suction Inches 3/8 Connection Pipe Size Discharge Inches 1/4 Physical Net Weight (Indoor / Outdoor) LBS 18/74 Height Condensing Unit Inches 21 1/4 Depth Condensing Unit Inches 11 1/4 Width Condensing Unit Inches 29 15/16 Height Evaporator Inches 11 Depth Evaporator Inches 7 13/16 Width Evaporator Inches 32 7/8 Refrigerant piping - Liquid side/ Gas side Oz R410A/44.09 Refrigerant piping - Liquid side/ Gas side Oz mm(inch) F6.35/F9.52(1/4"/3/8") Qty’per 20’ /40’ /40'HQ 96/206/234 Product Code: MCHS-09AVH1 Product Condition: New <br /> Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 7 + 2 Send Shop for Midea and browse manuals and details of MEHS09AVH1 MCHS09AVH1 Heating Repair Missouri City, TX Air Conditioning Contractors Bradenton, FL Duct Cleaning Oro Valley, AZ Air Conditioning Contractors Olathe, KS HVAC Service Plano, TX Electrical Company Maplewood, MN Top
