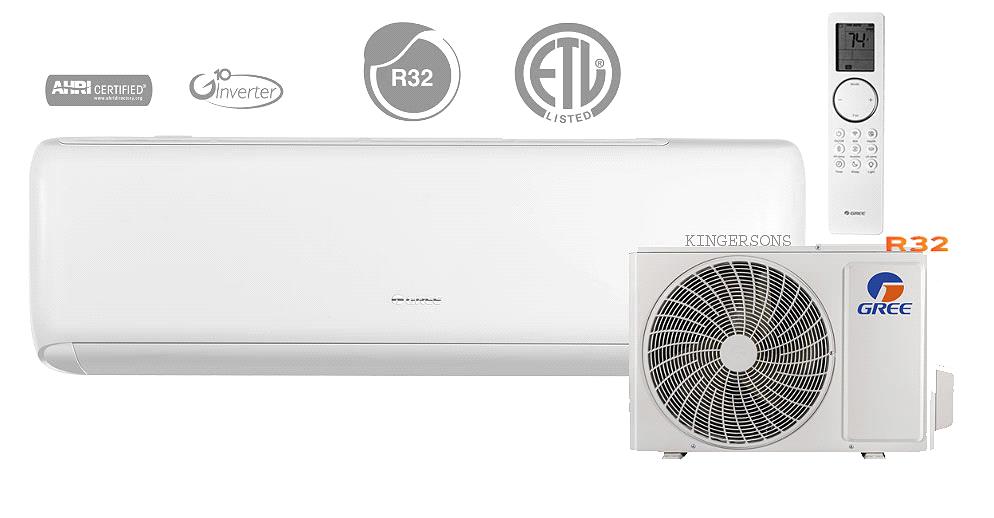

| SYSTEM TYPE |
HEAT PUMP |
| Outdoor Model |
LIV09HP115V1R32AO |
LIV12HP115V1R32AO |
LIV09HP230V1R32AO |
LIV12HP230V1R32AO |
LIV18HP230V1R32AO |
|
|
|
| Indoor Model |
LIV09HP115V1R32AH |
LIV12HP115V1R32AH |
LIV09HP230V1R32AH |
LIV12HP230V1R32AH |
LIV18HP230V1R32AH |
|
|
|
| SYSTEM PERFORMANCE |
| Cooling Capacity |
Min - Max |
Btu/h |
2,700 - 11,600 |
3,070 - 13,300 |
2,388 - 10,300 |
3,070 - 13,300 |
3,753 - 20,300 |
|
|
|
| Capacity @95°F |
Btu/h |
9,100 |
12,000 |
9,100 |
12,000 |
18,000 |
|
|
|
| Heating Capacity |
Min - Max |
Btu/h |
2,400 - 13,300 |
3,070 - 14,600 |
2,217 - 13,136 |
3,070 - 14,600 |
2,730 - 22,500 |
|
|
|
| Capacity @47°F |
Btu/h |
10,000 |
12,000 |
10,000 |
12,000 |
19,100 |
|
|
|
| Capacity @17°F |
Btu/h |
6,000 |
7,000 |
5,800 |
7,000 |
11,200 |
|
|
|
| Capacity Max @5°F |
Btu/h |
7,600 |
8,500 |
7,600 |
9,100 |
12,100 |
|
|
|
| SEER2 |
20.5 |
19.0 |
20.5 |
19.0 |
20.0 |
|
|
|
| EER2 |
11.9 |
9.8 |
12.5 |
9.8 |
12.4 |
|
|
|
| HSPF2 |
8.8 |
8.5 |
8.8 |
8.5 |
8.5 |
|
|
|
| COP @5°F |
1.9 |
1.8 |
1.9 |
1.8 |
1.8 |
|
|
|
| COP @47°F |
3.7 |
3.5 |
3.8 |
3.5 |
3.9 |
|
|
|
| Cooling Temperature Range |
°F |
0 - 118 |
0 - 118 |
0 - 118 |
0 - 118 |
0 - 118 |
|
|
|
| Heating Temperature Range |
°F |
-13 - 75 |
-13 - 75 |
-13 - 75 |
-13 - 75 |
-13 - 75 |
|
|
|
| Refrigerant Type |
R32 |
|
|
| INDOOR UNIT |
LIV09HP115V1R32AH |
LIV12HP115V1R32AH |
LIV09HP230V1R32AH |
LIV12HP230V1R32AH |
LIV18HP230V1R32AH |
|
|
|
| Air flow (Min - Max) |
CFM |
159 - 353 |
182 - 424 |
159 - 353 |
182 - 424 |
282 - 618 |
|
|
|
Sound Pressure Level (Min
- Max) |
dB(A) |
24 - 43 |
27 - 47 |
24 - 41 |
27 - 47 |
34 - 53 |
|
|
|
| Dehumidification |
pt/hr |
1.69 |
2.96 |
1.69 |
2.96 |
3.80 |
|
|
|
| External Dimensions (W x H x D) |
in |
32-7/8 × 10-53/64
× 7-7/8 |
32-7/8 × 10-53/64
× 7-7/8 |
32-7/8 × 10-53/64
× 7-7/8 |
32-7/8 × 10-53/64
× 7-7/8 |
37-1/8 × 13-7/64 ×
9-11/16 |
|
|
|
| Package Dimension (W x H x D) |
in |
35-15/64 × 13-37/64 ×
10-43/64 |
35-15/64 × 13-37/64 ×
10-43/64 |
35-15/64 × 13-37/64 ×
10-43/64 |
35-15/64 × 13-37/64 ×
10-43/64 |
39-13/32 x 15-15/16 x
12-43/64 |
|
|
|
| Net Weight |
lbs |
19.8 |
19.8 |
19.8 |
19.8 |
28.7 |
|
|
|
| Gross Weight |
lbs |
24.3 |
24.3 |
24.3 |
24.3 |
34.2 |
|
|
|
| OUTDOOR UNIT |
LIV09HP115V1R32AO |
LIV12HP115V1R32AO |
LIV09HP230V1R32AO |
LIV12HP230V1R32AO |
LIV18HP230V1R32AO |
|
|
|
| Sound Pressure Level |
dB(A) |
51 |
52 |
51 |
52 |
57 |
|
|
|
| External Dimensions (W x H x D) |
in |
28-13/16 x 21-7/8 x
12-63/64 |
28-13/16 x 21-7/8 x
12-63/64 |
28-13/16 x 21-7/8 x
12-63/64 |
28-13/16 x 21-7/8 x
12-63/64 |
31-37/64 x 21-27/32 x 13-25/32 |
|
|
|
| Package Dimension (W x H x D) |
in |
31-17/64 x 24-7/32 x
14-51/64 |
31-17/64 x 24-7/32 x
14-51/64 |
31-17/64 x 24-7/32 x
14-51/64 |
31-17/64 x 24-7/32 x
14-51/64 |
34-21/64 x 24-13/32 x 15-43/64 |
|
|
|
| Net Weight |
lbs |
55.1 |
58.4 |
52.9 |
56.2 |
70.6 |
|
|
|
| Gross Weight |
lbs |
60.6 |
63.9 |
58.4 |
61.7 |
76.1 |
|
|
|
| REFRIGERANT PIPING |
| Refrigerant Charge |
oz |
18.7 |
17.6 |
18.7 |
17.6 |
32.5 |
|
|
|
| Additional Charge |
oz/ft |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
|
|
|
Line Set Size (Liquid - Gas)
- Flared Connections |
in |
1/4 - 3/8 |
1/4 - 3/8 |
1/4 - 3/8 |
1/4 - 3/8 |
1/4 - 1/2 |
|
|
|
| Pre-Charge Length |
ft |
25 |
| Pipe Length (Min - Max) |
ft |
10 - 66 |
10 - 66 |
10 - 66 |
10 - 66 |
10 - 82 |
|
|
|
| Max. Pipe Elevation |
ft |
40 |
40 |
40 |
40 |
33 |
|
|
|
| ELECTRICAL |
| Power Supply |
208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
|
|
| Voltage Range (Min - Max) |
VAC |
103 - 126 |
187 - 253 |
| Rated Current - Cooling |
A |
12.5 |
14.34 |
6.5 |
7.02 |
9.5 |
|
|
|
| Rated Current - Heating |
A |
15.4 |
14.64 |
7 |
7.47 |
9.5 |
|
|
|
| MCA |
A |
19 |
19 |
10 |
12 |
13 |
|
|
|
| MOCP |
A |
20 |
20 |
15 |
15 |
15 |
|
|
|
| Suggested Breaker Size |
A |
20 |
20 |
10 |
15 |
15 |
|
|
|
| Main Power Wire Size |
AWG |
Per Local Code |
| Interconnecting Wire Size |
AWG |
14 / 4 |
| LIMITED WARRANTY |
5 Years Parts, 7 Years Compressor - Residential & Commercial |
